How to Choose a Waterproof Breathable Membrane for Steel Buildings: Key Specifications and Installation Tips

Choosing a waterproof breathable membrane for steel buildings requires more than comparing prices or grammage. The right product must resist water penetration, manage moisture appropriately, and withstand installation and service conditions.

Identify Your Building Requirements

Before selecting a membrane, consider the building type, climate, roof construction, and indoor humidity.

Insulated steel roofs: Evaluate condensation risks, insulation placement, and moisture control.
Metal wall systems: Prioritize rain protection, drainage, and properly sealed joints.
Industrial buildings: Consider indoor humidity, air leakage, and temperature differences.

The Metal Building Manufacturers Association's condensation guidance explains why condensation must be addressed through the complete building system rather than a single material.

Compare Five Key Specifications

Specification	What to Check
Water resistance	Hydrostatic head or applicable test results
Vapor permeability	WVTR, permeance, or Sd value
Tensile strength	Resistance to pulling forces during installation
Tear resistance	Resistance to damage during handling and fastening
UV and temperature resistance	Exposure limits and operating temperature

Water resistance and breathability are different properties. A membrane may resist liquid water while allowing water vapor to pass through it. Its actual performance depends on the material structure and testing conditions.

The ASTM E96/E96M water vapor transmission test standard provides methods for measuring vapor transmission. When comparing products, check test methods, units, and environmental conditions rather than comparing figures blindly.

Grammage, measured in grams per square meter (GSM), alone does not determine membrane quality. A heavier product is not necessarily more suitable for every steel building.

Evaluate Condensation Risk

Condensation can occur when moist air encounters surfaces cold enough for water vapor to condense. In steel buildings, indoor humidity, temperature differences, insulation gaps, and air leakage can all contribute to moisture problems.

For example, a heated warehouse in a cold climate may require a different moisture-control strategy from a factory with high indoor humidity. The Building Science Corporation's guidance on air flow control explains how uncontrolled air movement can affect building performance and moisture management.

A breathable membrane does not automatically function as an air barrier or vapor barrier. Before selecting a product, evaluate the complete roof assembly, insulation location, indoor humidity, and intended drying direction. Complex projects may require a building-envelope specialist to assess condensation risks.

Installation Tips to Prevent Failures

Even a suitable membrane can underperform when installation details are overlooked.

Incorrect overlaps: Follow manufacturer requirements and the roof's drainage direction.
Poor sealing: Check joints around fasteners, pipes, rooflights, ridges, and eaves.
Excessive UV exposure: Observe the product's maximum permitted exposure period.
Blocked drainage: Ensure water can drain without collecting at vulnerable joints.
Installation damage: Inspect for tears, punctures, wrinkles, and loose edges before covering the membrane.

The U.S. Department of Energy's building-envelope moisture guidance explains how bulk water, air movement, and vapor diffusion can contribute to moisture problems.

Always follow product-specific installation instructions and project requirements. Overlap dimensions, sealing methods, and exposure limits vary between products and roof designs.

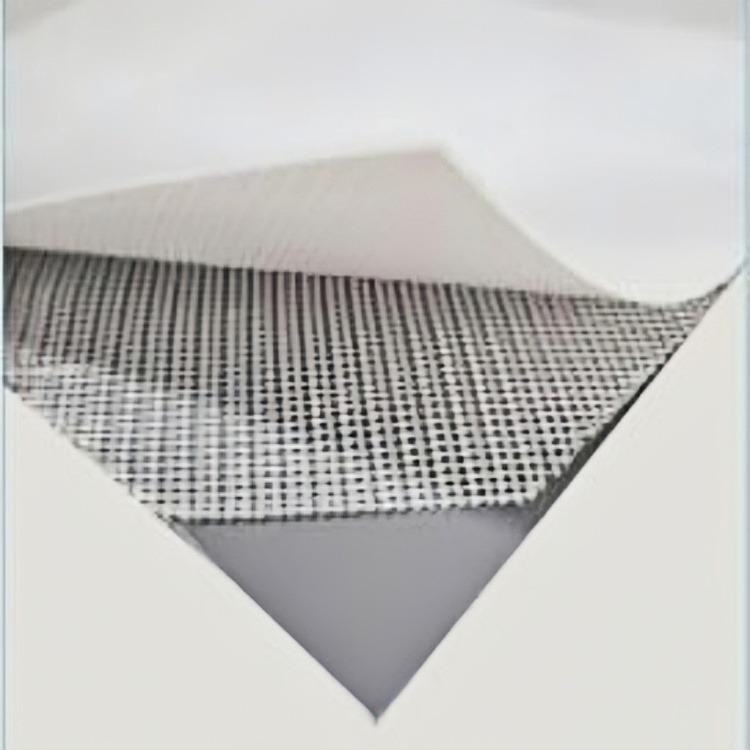

reinforced‑tpo‑waterproof‑membrane‑fiberglass‑reinforced‑tpo‑roofing‑sheet‑building‑waterproof‑material

How to Distinguish Leaks from Condensation

Water droplets beneath a steel roof do not always indicate membrane failure. Identifying when the problem occurs can help narrow down the cause.

After rainfall: Inspect flashing, roof penetrations, fasteners, overlaps, and drainage details.

During cold weather or high indoor humidity: Check insulation continuity, air leakage, indoor moisture sources, and vapor-control design.

The MBMA condensation fact sheet provides additional industry-specific background on moisture problems in metal buildings.

These observations are initial troubleshooting clues, not definitive diagnoses. A site inspection may be necessary to distinguish rainwater ingress from condensation or other moisture sources.

Match Membrane Performance to Project Conditions

The right waterproof breathable membrane depends on climate and roof design. In regions with heavy rainfall, prioritize water resistance and effective drainage. In hot climates, check UV resistance and permitted exposure time. For insulated steel buildings in cold climates, consider vapor permeability, insulation placement, indoor humidity, and condensation risks.

Compatibility is equally important. Ensure the membrane works with the roofing materials, insulation, tapes, and sealants used in the project. Evaluate the complete roof assembly rather than relying on individual product specifications to ensure reliable moisture protection and long-term performance.

Conclusion

Choosing a waterproof breathable membrane for steel buildings requires balancing water resistance, vapor permeability, mechanical strength, environmental exposure, and system compatibility. Correct installation and condensation control are equally important.

Evaluate the building's actual conditions, compare technical data using consistent test methods, and confirm that the selected membrane suits the complete roof or wall assembly. Contact Jinsimai to discuss membrane specifications for your steel building project.
