EPDM Waterproofing Membrane for Roofing and Civil Engineering Applications
Product Overview

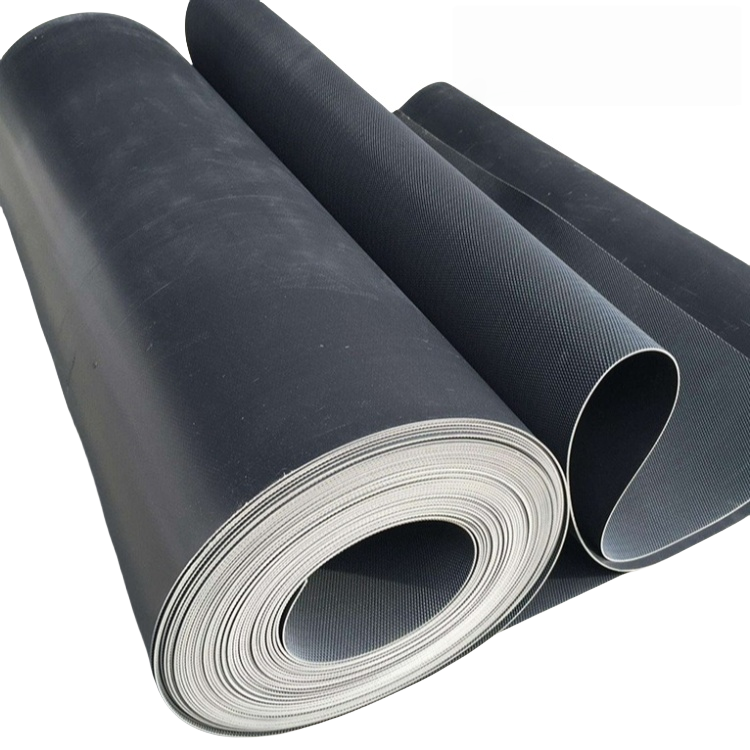

EPDM waterproof membrane is a single-ply, flexible roofing and waterproofing sheet manufactured from ethylene-propylene-diene monomer (EPDM) synthetic rubber. The thermosetting rubber compound provides a seamless, highly elastic membrane that conforms to substrate movement without cracking.
The product addresses the need for durable, long-term waterproofing on exposed roofs, low-slope structures, and civil engineering projects where flexibility and resistance to extreme weather are priorities. Its rubber formulation provides exceptional elasticity, allowing the membrane to accommodate structural movement and thermal expansion without loss of integrity.
Typical installations include low-slope commercial and residential roofs, ballasted roofing systems, pond and reservoir liners, tunnels, and below-grade waterproofing applications.
Available in thicknesses from 1.0 mm to 2.0 mm, with roll widths from 1.0 m to 4.0 m and roll lengths from 10 m to 20 m as standard. Custom sizes and widths are available subject to production feasibility. Our team reviews drawings solely to assess production feasibility and does not undertake engineering design or system selection.
Product Features
High elasticity and flexibility
The rubber formulation provides high elongation and elastic recovery, allowing the membrane to accommodate substrate movement, thermal expansion, and structural settlement without cracking or loss of integrity.
Weather and ozone resistance
EPDM offers resistance to UV radiation, ozone, and weathering. These are laboratory material-level properties; actual field performance depends on site conditions and complete system design.
Wide temperature tolerance
The membrane maintains flexibility at low temperatures and stability at elevated temperatures. These are laboratory material-level properties; actual on-site performance shall be evaluated by the project engineer according to local climate and installation conditions.
Easy installation
Available in both fully adhered and mechanically fastened systems. The membrane can be installed using adhesive or ballast, with seams sealed using factory-engineered tape or liquid adhesive. Suitable installation method shall be confirmed by project design.
Surface and Finish Options
EPDM waterproof membrane is available in various surface finishes. Available options include:
| Option Type | Description |
|---|---|
| Smooth (Standard) | Smooth black rubber surface; suitable for most exposed and non-exposed applications |
| Textured | Textured surface for improved slip resistance on slopes |

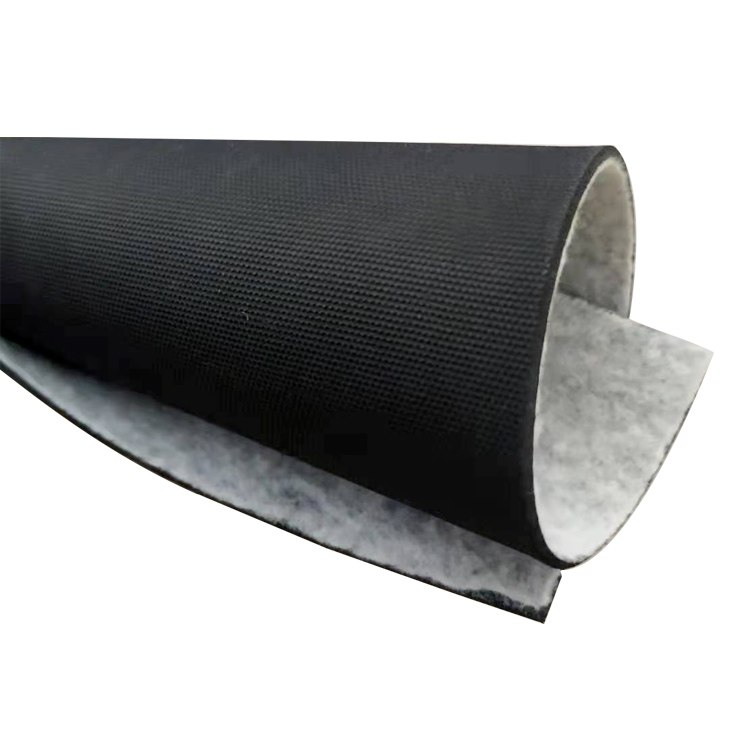

| Fleece-Backed | Polyester fleece laminated to underside for adhesive bonding in fully adhered systems |
| Self-Adhesive | Peel-and-stick backing for quick installation without liquid adhesives |
Technical Specifications
The following table shows the available manufacturing range for EPDM waterproof membrane. Final dimensions and packaging are confirmed according to order requirements and production feasibility.
| Parameter | Available Range |
|---|---|
| Thickness | 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm |
| Roll Width | 1.0 m – 4.0 m (standard); custom widths available |
| Roll Length | 10 m – 20 m (standard); custom lengths available |
| Surface | Smooth / Textured / Fleece-backed / Self-adhesive |
| Color | Black (standard) |
| Elongation | Material-level high elasticity; specific data subject to order batch and project documents |
Applications
EPDM waterproof membrane is suitable for waterproofing applications across the following areas:
All containment and underground applications require professional project design and on-site verification.
Commercial and Residential Roofing
Low-slope and flat roof systems
Ballasted and protected membrane roofing
Metal roof and concrete deck waterproofing
Civil Engineering and Infrastructure
Tunnel and subway waterproofing
Bridge deck and parking structure membranes
Retaining wall and planter waterproofing
Water Containment
Pond and lake liners
Reservoir and canal lining
Irrigation channel waterproofing
Specialty Applications
Green roofs and roof gardens
Terrace and balcony waterproofing
Swimming pool liners (when protected)
Customization and Packaging
Thickness, roll width, roll length, surface type, product labeling, and outer packaging are all configurable per order and finalized before production.
Each roll is protected with suitable wrapping according to its size. Container stowage plans are prepared per order to avoid transit damage and control freight costs.
MOQ: Quoted based on specifications and order volume
Sample availability: Material samples are available on customer's request
Production lead time: Determined by specifications and order size
Packaging: Protective wrapping / cardboard cores / palletized where required / final packaging arranged per order
OEM labeling: Offered upon request
FAQ
Q1. What is EPDM waterproof membrane?
A single-ply synthetic rubber membrane used for roofing, waterproofing, and pond lining applications. It offers high elasticity and reliable weather resistance for general waterproofing scenarios.
Q2. How are EPDM membrane seams sealed?
Seams are sealed using factory-engineered seam tape or liquid adhesive. Sealing performance depends on proper surface preparation and qualified installation.
Q3. What thickness should I choose for my project?
Thickness selection depends on project usage, substrate conditions, and local construction standards. Final specification shall be confirmed by the project engineering team.
Q4. What is the temperature range for EPDM membrane?
The material maintains flexibility at low temperatures and stability at elevated temperatures under laboratory conditions. Actual on-site performance depends on climate and installation method.
Q5. What is the MOQ for EPDM waterproof membrane?
Quoted based on thickness, width, and total order volume. Contact us with your specifications for a confirmed MOQ.
Request a Quote
Have project specifications and membrane requirements ready? Our technical team can review your documentation to assess production feasibility based on our shop capabilities.
We will confirm the available specifications, pricing, production lead time, and estimated shipping arrangements based on your requirements.
