Foil Faced Glass Wool Pipe, Thermal Insulation Pipe Shell for HVAC Pipeline Anti Condensation & Noise Reduction
1. Product Overview

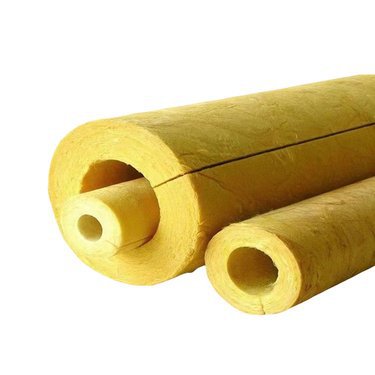

Glass wool pipe shell is prefabricated Class A non-combustible inorganic insulation made for round pipelines. Produced with natural mineral fibres and eco resin curing, it comes with pre-cut slots for easy wrapping. Unlike glass wool boards and rolls, the shell closely follows pipe curvature to fix heat loss, pipe freezing, condensation and noise issues on HVAC, building and industrial piping. Aluminum foil wrapped versions add heat reflection, waterproof and scratch resistance. With fixed dimensions and consistent quality, they install quickly and fit indoor, outdoor pipes, pump rooms and heat exchange stations for air conditioning, heating and low-temperature industrial pipeline insulation.
2. Core Product Features
Prefabricated Integral Structure & Tight FittingFactory pre-slit tubular shells snap directly onto pipes and fit curved surfaces fully. No installation gaps form to avoid heat leakage, offering better sealing than conventional insulation materials.A-grade Incombustible & Pipeline Fire SafetyMade from inorganic mineral fibre, the material stays non-flammable with no toxic smoke or molten drips when burned. It builds a complete fire barrier to stop flame spreading along pipes and meets standard international HVAC fire specifications.Low Thermal Conductivity & High Energy SavingGood thermal blocking stabilises pipe operating temperature, stops cold pipe condensation and hot pipe heat waste, cutting long-term power consumption of matched equipment.Porous Sound Absorption & Noise ReductionFine porous fibre absorbs vibration noise from flowing water and air, lowers external sound transmission and reduces noise inside pump rooms, equipment spaces and pipe shafts.Hydrophobic Treatment & Anti-condensationFull hydrophobic processing improves water repellency and avoids pipe condensation, mould growth and insulation pulverisation under high-humidity and harsh working conditions.Stable Performance & Maintenance-freeStable chemical composition resists acid, alkali and ageing without corroding pipe surfaces. It keeps steady performance under frequent temperature and humidity shifts with no regular maintenance required.
3. Product Types

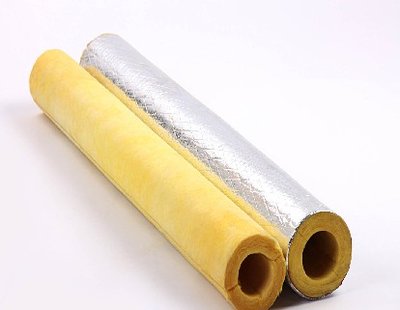

Aluminum Foil Faced Glass Wool PipeOur best-selling option with foil outer layer for heat reflection, waterproof, dustproof, scratch and corrosion protection. Suitable for exposed main HVAC and industrial pipelines with outstanding damp-proof and insulation performance.Plain Glass Wool Pipe ShellCost-effective basic grade for hidden pipelines, closed pipe shafts and embedded indoor piping to satisfy regular thermal and acoustic insulation needs for common projects.
4. Technical Specifications
Inner diameter covers 22mm–630mm to match water supply, drainage, HVAC and heating pipes of all common sizes. Insulation thickness ranges 20mm–100mm with extra thick options available for special temperature needs. Available densities include 48kg/m³, 64kg/m³, 80kg/m³, 96kg/m³ while standard single piece length is 1 metre. The product holds Class A non-combustible fire rating and fits low-temperature pipes, hot water pipes, air conditioning and industrial pipeline systems.
5. Application Scenarios
HVAC PipelinesInsulate chilled and AC hot water pipes against heat loss, condensation and running noise.Building Heating SystemsKeep indoor heating pipes warm to reduce unnecessary heat waste.Industrial Low-temperature PipelinesProvide insulation, anti-freeze and corrosion protection for industrial low-temperature delivery piping.Water Supply & Drainage ProjectsPrevent outdoor and buried pipes from winter freeze cracking and summer condensate dripping.Pump Rooms & Heat Exchange StationsInsulate clustered on-site pipelines to cut noise and fight moisture corrosion inside high-humidity mechanical areas. For high-humidity HVAC projects, you can also choose Rubber and Plastic Pipe.
6. FAQ
Q1: What are the main functions of glass wool pipe?A1: It is dedicated pipe insulation for heat preservation, freeze prevention, anti-condensation, sound absorption and fire protection to secure all types of HVAC and industrial pipelines.
Q2: What differs between foil-faced and plain glass wool pipes and how to choose?A2: Foil-covered pipes reflect heat and stand up to damp and ageing for exposed humid piping. Plain pipes cost less and work well for concealed enclosed pipe spaces.
Q3: Can glass wool pipe stop outdoor pipes freezing and cracking in cold winter?A3: Yes. Reliable insulation locks pipe internal temperature and effectively avoids frost crack for outside pipelines in low-temperature seasons.
Q4: Is glass wool pipe convenient for fast site installation?A4: Quite easy. Pre-slit design clamps onto pipes directly without complex tools and greatly speeds up construction progress.
Q5: Does moisture cause falling off? Can it serve long-term in damp surroundings?A5: No. Hydrophobic treatment controls water intake and resists mould and peeling. Foil-faced variants maintain stable performance for years inside damp areas like pump rooms.
7. Product Summary
Prefabricated glass wool pipe shell is tailor-made insulation for circular piping. Compared with glass wool boards and blankets, it fits pipes tighter and installs faster with better concentrated insulation effect. Combining Class A fire resistance, energy saving, anti-freeze, anti-condensation, sound reduction and moisture resistance, the product widely serves central air conditioning, building heating, industrial low-temperature and plumbing anti-freeze projects as high cost-performance universal pipe insulation for global construction works.
