Built for Low-Slope Roofs: Scrim Reinforced TPO Roofing Membrane for Lasting Performance
Scrim Reinforced TPO Roofing Membrane Manufacturer for Low-Slope Commercial and Industrial Roofs

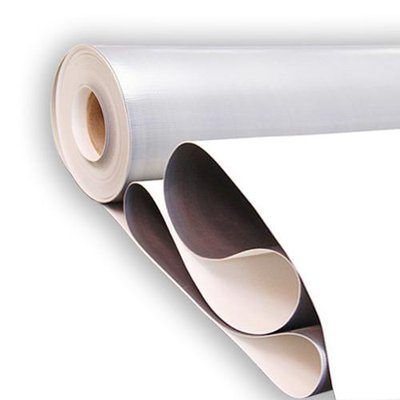

We produce scrim reinforced TPO roofing membrane for flat and low-slope buildings that need a light, weldable and reflective single-ply cover. A polyester scrim sits between two TPO layers, giving the sheet the strength to hold fasteners and resist tearing. Share your roof area, deck type and attachment method, and we will recommend a sheet thickness and scrim grade that suit the project.
Fabric-Strengthened Sheets for Single-Ply Roof Performance

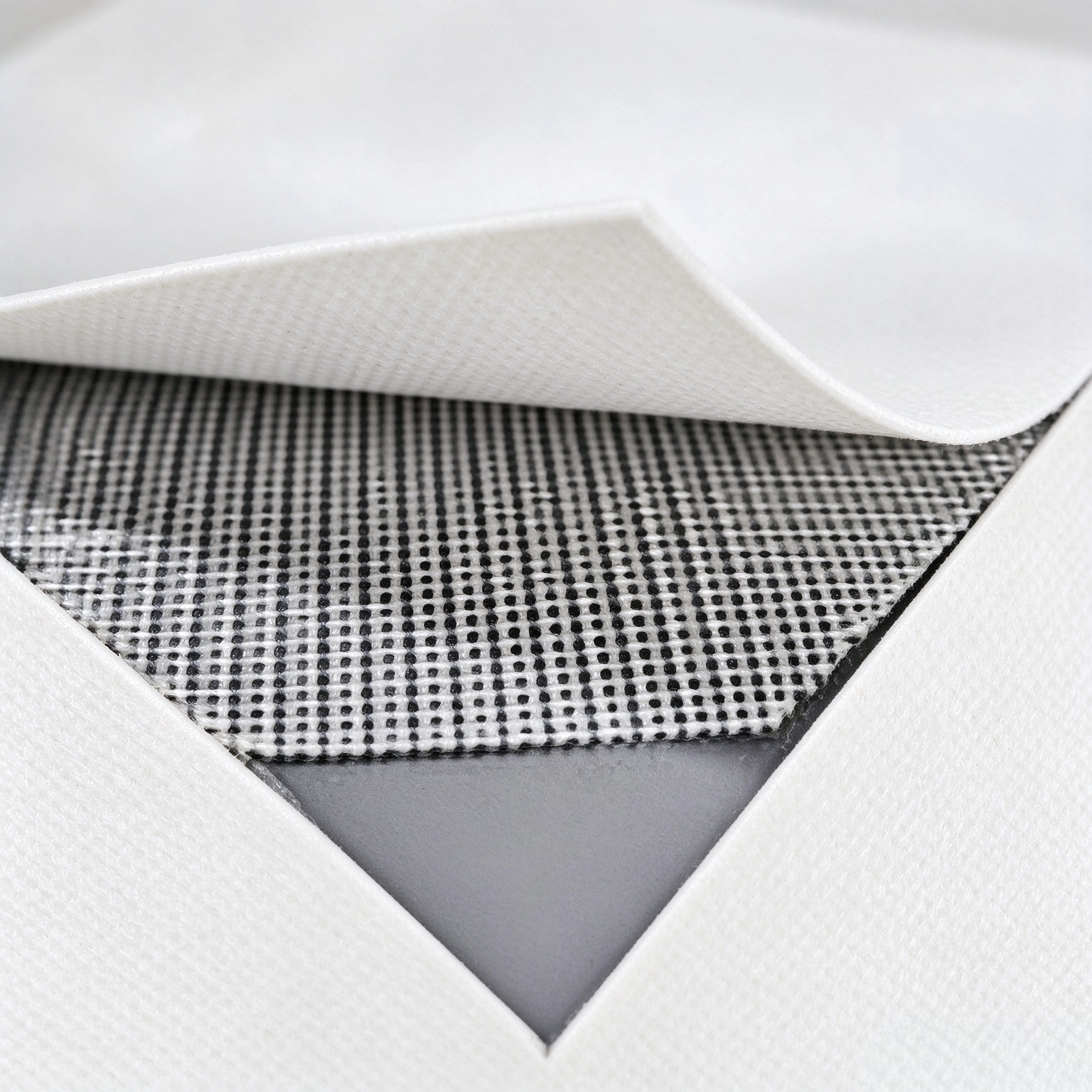

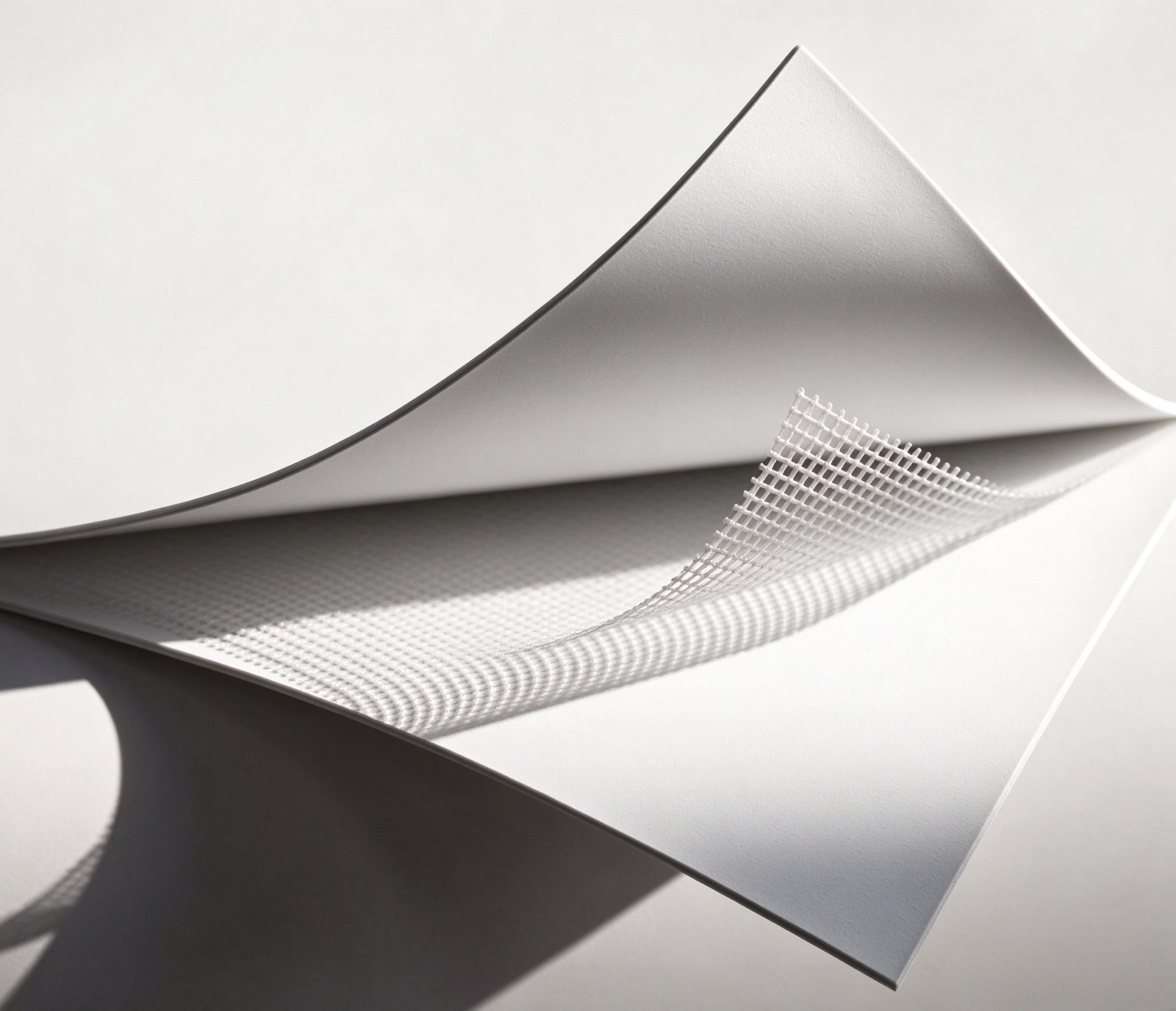

Embedded Polyester Scrim for Tear and Fastener Hold
The woven or knitted scrim carries the load around fastener plates, so wind uplift is shared across the sheet.
Tight yarn spacing improves resistance to tearing at edges and penetrations.
Dimensional Stability across Temperature Swings
The fabric core limits shrinkage and growth, which keeps seams and corners from pulling when a roof moves from hot afternoons to cold nights.
Heat-Welded Seams with Defined Thickness over Scrim
Thickness above the fabric is the layer that actually melts and fuses, so a sheet with enough cover allows a wider weld window.
Overlaps of scrim reinforced TPO roofing membrane become one continuous layer instead of a glued joint.
Reflective Surface for Lower Roof Heat Gain
A white or light-toned face reflects solar energy, which helps reduce rooftop temperature and cooling demand.
Sheet Specifications
| Parameter | Specification |
|---|---|
| Material | Thermoplastic polyolefin (TPO) with polyester scrim reinforcement |
| Surface Texture | Smooth |
| Nominal Thickness | 1.2 mm (45 mil) / 1.5 mm (60 mil) / 2.0 mm (80 mil) |
| Roll Width | 1.52 m / 2.44 m / 3.05 m |
| Roll Length | 30.5 m |
| Resin Type | Polypropylene and ethylene-propylene rubber blend |
| Seam Joining Method | Hot-air welding |
| Color | White / Light grey / Tan |
| Packaging | Core-wound rolls, film-wrapped |
Buyers often compare total thickness only, but the figure that matters for welding and weathering is the layer above the scrim. Our reinforced TPO waterproofing membrane selection guide walks through thickness, seams and total roof cost in more depth.
Roof Types that Rely on Fabric-Reinforced Single-Ply Sheets
Mechanically Attached Warehouse Roofs
Fasteners and plates grip through the scrim, so large steel-deck roofs can be covered quickly and without adhesive. Wide rolls reduce the number of field seams.
Fully Adhered Flat Roofs
Bonded over insulation board, the membrane gives a quiet, wrinkle-free surface on roofs where fasteners are not wanted.
Re-Cover over Existing Roofs
The light scrim reinforced TPO roofing membrane adds little dead load when laid over a sound old roof, which suits renovation work.
High-Wind Exposed Buildings
Closer fastener rows along the perimeter work because the scrim spreads the pull-out force around each plate.
FAQ: Scrim Behavior, Seams and Roof Performance
1. How does the scrim affect fastener performance on a mechanically attached roof?
Fasteners and plates hold against the fabric rather than the soft TPO alone. Keep every row inside the marked fastening zone beside the seam so the scrim carries the load.
2. Can a scrim reinforced TPO roofing membrane tolerate standing water?
Short periods of ponding do not harm it, but lasting puddles gather dirt and stress seams. Tapered insulation or added drains solve the cause.
3. Does a white roof lose its cooling effect once it gets dirty?
Reflectivity drops as dust builds up, though a yearly rinse with water and a soft brush restores much of it. Light grey hides soiling better near factories and roads.
4. What should installers do at cut edges to stop water traveling along the scrim?
Seal any exposed fabric with a cut-edge sealant, especially at wall terminations and penetrations. A coated scrim reduces the problem, but sealing leaves nothing to chance.
Plan Your Roofing Membrane Supply by Project Scope
Whether you are re-roofing one warehouse or bidding for several buildings, we support contractors, distributors and project buyers with custom specifications, bulk wholesale supply and tender documentation. Send us your roof drawings and exposure conditions, and we will match a scrim reinforced TPO roofing membrane to your plan.
