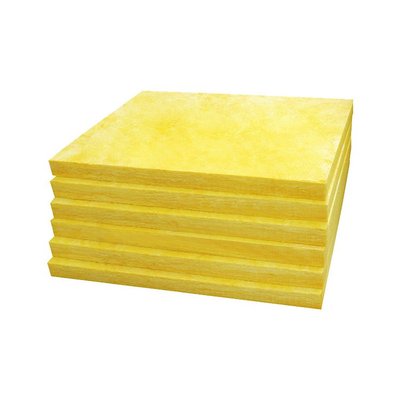

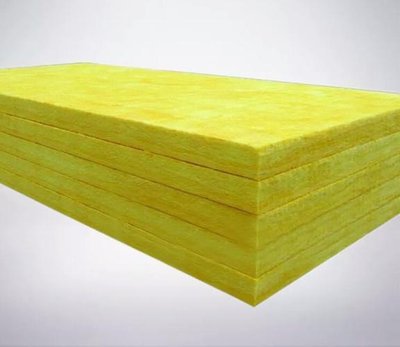

Semi-rigid Glass Wool Insulation Board for Walls and Ceilings
Product Overview
Glass wool board is a semi-rigid insulation panel made from fine glass fibers bonded into a stable porous structure. Its flat panel form makes it suitable for walls, ceilings, HVAC equipment and acoustic assemblies where shape stability and uniform insulation thickness are required.
The flat panel form enables clean cutting, secure fitting, and reliable coverage on walls, ceilings, and equipment surfaces. Its dimensional stability helps maintain consistent insulation thickness across the installed area.
Glass wool board can be customized in density, thickness, width, length, and facing material according to order requirements.
Product Features
1. Semi-rigid and shape-stable
The board maintains a flat shape during handling and installation, making it easier to achieve uniform coverage on walls, ceilings, and other planar surfaces. Its semi-rigid structure helps the board maintain a flat shape during handling and installation.
2. Thermal insulation
The porous fiber structure helps reduce heat transfer. Actual thermal performance depends on board density, thickness, installation method and the complete building or equipment system.
3. Sound absorption and acoustic control
The porous fiber structure absorbs part of the airborne sound energy and helps reduce reflected noise and reverberation. The overall sound insulation performance depends on the board thickness, density, installation method, and complete construction system.
4. Easy to cut and install
The board can be cut to size using standard insulation installation tools such as utility knives or saws. Its semi-rigid form allows it to be fitted between framing members when the board dimensions match the cavity size. Additional support or mechanical fixing may be required depending on the installation system.
Available Facing Options
Glass wool board can be supplied unfaced or with various factory-applied surface facings. Available facing options include:
| Facing Type | Description |
| Unfaced | Glass wool board without an additional surface facing; suitable for concealed insulation assemblies |
| Aluminum Foil | Provides a reflective finished surface and helps protect the exposed board surface |
| Non-woven Fabric | Provides a cleaner finished surface for visible indoor applications; available colors should be confirmed before ordering |
| Fiberglass Cloth | Provides a more durable surface for handling and exposed applications |
| Kraft Paper | Provides a paper-finished surface for selected building insulation applications |
Please specify the required surface facing when requesting a quotation.
Technical Specifications
The following table shows the available manufacturing range. Final dimensions, density, facing and packaging are confirmed according to order requirements and production feasibility.
| Parameter | Available Range |
| Density | 30 – 100 kg/m³ |
| Thickness | 20 – 100 mm |
| Width | 600 – 1,200 mm |
| Length | 600 – 2,400 mm |
| Facing | Unfaced / aluminum foil / non-woven fabric / fiberglass cloth / kraft paper |
| Packaging | Confirmed according to board density and dimensions |
Other dimensions may be available subject to production feasibility and minimum order quantity.
Applications
Glass wool board is suitable for thermal and acoustic insulation across the following areas:
1. Building Insulation
Internal wall and partition cavity insulation
Ceiling and suspended ceiling insulation
Insulation within protected wall and roof assemblies
Prefabricated and metal building insulation
2. HVAC Applications
Thermal and acoustic treatment around air-handling equipment
Insulation around large duct and equipment surfaces
Acoustic lining within equipment enclosures
3. Acoustic Applications
Sound-absorbing layers inside wall and ceiling assemblies
Studios, theaters, meeting rooms and equipment rooms
Machinery and equipment enclosures
4. General Industrial Applications
Suitable for selected equipment surfaces and enclosures where semi-rigid insulation is required. The operating temperature and installation conditions should be confirmed before ordering.
Customization and Packaging
Glass wool board can be customized according to order requirements. Available customization includes density, thickness, width, length, facing material, product label, and outer packaging.
Glass wool boards are packed in protective bags or bundles according to their density, thickness and dimensions. The final packing and container loading quantity are confirmed for each order.
MOQ: Confirmed according to the required specifications and order quantity
Sample availability: Available upon request
Production lead time: Confirmed according to the required specifications and order quantity
Packaging: PE bag / Woven bag / Confirmed according to board density and dimensions
OEM label: Yes
FAQ
Q1. Can the density and thickness be customized?
Yes. Density, thickness, width, and length can be produced according to order requirements, subject to minimum order quantity and production feasibility.
Q2. What facing options are available?
The board can be supplied unfaced or laminated with aluminum foil, non-woven fabric, fiberglass cloth, or kraft paper. Please specify the required surface facing when requesting a quotation.
Q3. Can glass wool board be used for both thermal and acoustic insulation?
Yes. Its fibrous structure helps reduce heat transfer and absorb airborne sound. The overall acoustic performance depends on density, thickness, installation method, and the complete wall, ceiling, or HVAC construction.
Q4. Is the board easy to cut and install?
The board is semi-rigid and can be cut using ordinary insulation installation tools such as utility knives or saws. It can be fitted between framing members when board dimensions match the cavity size, and additional fixing may be required depending on the installation system. Installers should use suitable protective equipment.
Q5. How is the product packed?
Glass wool boards are packed in protective bags or bundles. The number of boards per package and container loading quantity depend on density, thickness, and board dimensions, and are confirmed for each order.
Q6. What is the difference between glass wool board and glass wool blanket?
Glass wool board is semi-rigid and maintains a flat shape, making it suitable for walls, ceilings, equipment surfaces and other applications where shape stability is preferred. Glass wool blanket is flexible and supplied in rolls, making it suitable for continuous coverage over large or irregular surfaces.
We will confirm the available specification, price, production lead time, and estimated loading quantity based on your requirements.
